DISC MOWERS

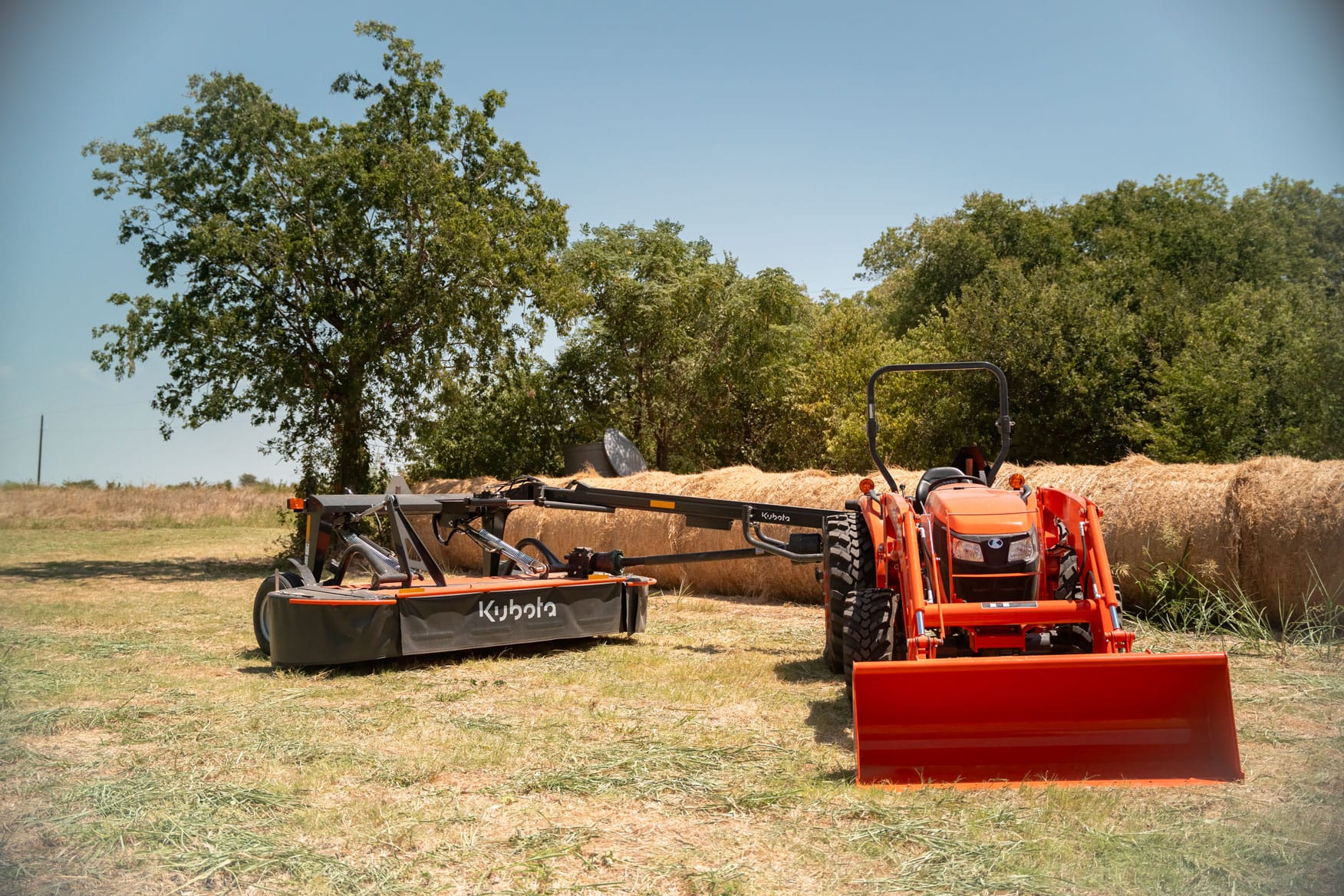

Easy to operate and featuring a low 50 PTO horsepower requirement, the KubotaDM5028 Disc Mower assists you in taking your productivity to the next level. Lateral flotation and independent active suspension ensure the disc mower takes on hillsides and slopes with cutting potential and the drawbar swivel hitch gearbox keeps turns tight. A 9’ 2 “working width means you’re going to be working with efficiency throughout the day, and transporting safely with folding side guards.
The Kubota DM5032, DM5040, and DM5028 have an exceptional ability to adapt to field conditions. The active suspension ensures even pressure across the entire cutterbar while in rough conditions. With 13.8" of upward suspension and 9.3" of downward adaption, these machines ensure that the cutting discs are always positioned close to the ground, ensuring outstanding cutting quality and trouble-free mowing.
The DM5000 Series floatation system protects the complete machine from possible shock loads. When an obstacle is encountered the cutterbar will pivot upward and over the obstacle and then automatically return once the obstacle has been passed.
DM5000 series offers a secure and convenient transport solution while still providing excellent road visibility. To make transportation width as narrow as possible, the side guards can be folded upwards. This reduces the transport width for DM5032 and DM5028 to only 9'10" while in the field it cuts a full 10'6". The transport width for DM5040 is reduced to 12'5" while in field it cuts 13'1".
DM5000 series machines provide for 17 degrees of sideward adaption. This generates many benefits while working on hillsides or when aligning the unit on headlands.
The drawbar swivel hitch gearbox is fixed to the mainframe in order to minimize movement during operation, yet it provides unlimited rotational movement between the machine and the tractor making it easier to perform sharp turns.
Break Away
Cutterbar Operating Angle
Cutting Width Ft. (m)
High Skids +20/+40/+80 Mm
Hitch ( C A T)
Lighting Kit
Minimum P T O Horsepower Required H P/ K W
Non- Stop Break Away
Number Of Disc And Knives
Overrun Clutch
P T O R P M
Pin Hitch
Remotes
Stubble Height In. (mm)
Swath Board ( R H/ L H)
Swath Rollers ( R H/ L H)
Transport Width Ft. (m)
Weight Lbs. (kg)
Not Available
±17
9' 2"
Standard / Optional / Optional
2
Standard
45
Not Available
8/24
Standard
540
Standard
2
1.79"-3.94"
Not Available
Optional
8' 6"
2734
